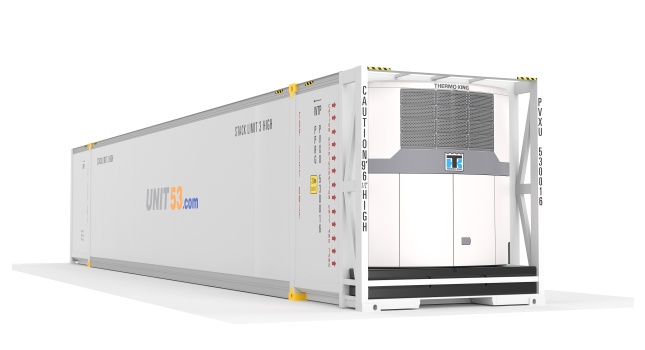

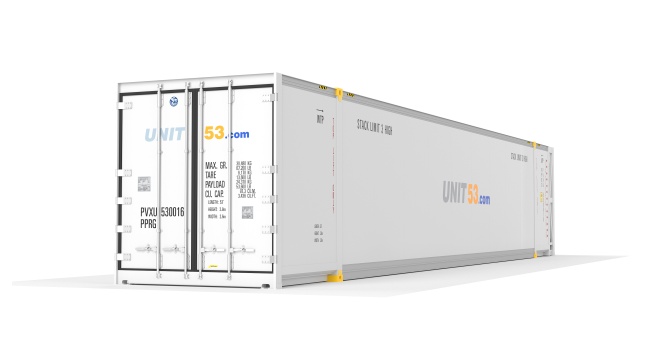

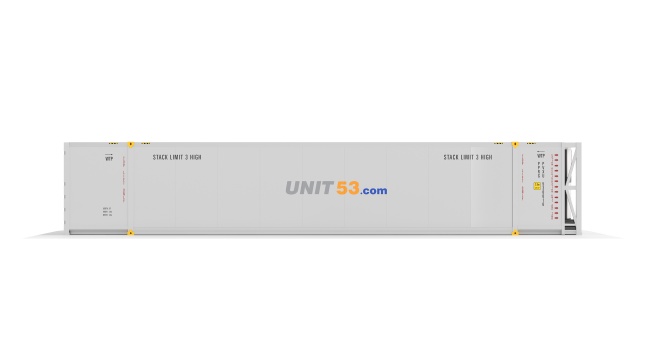

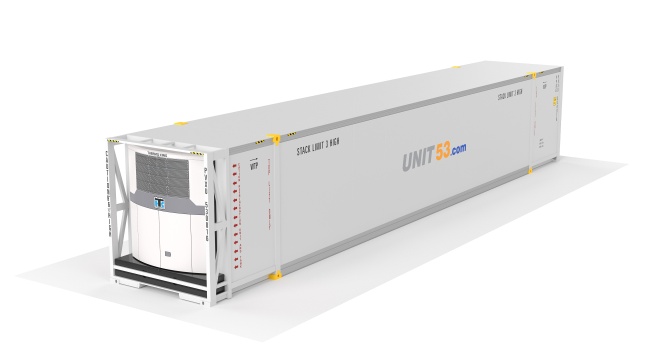

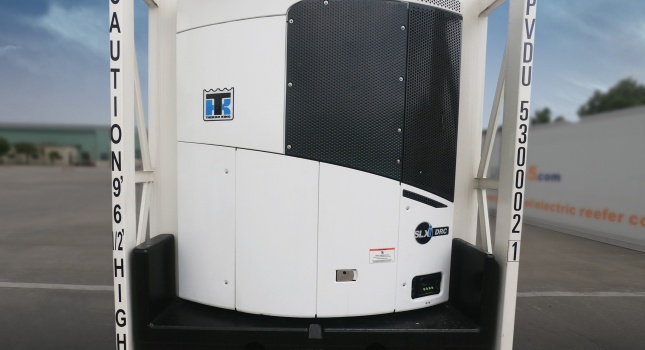

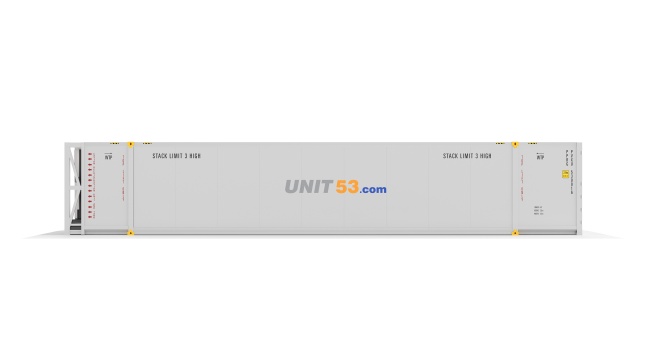

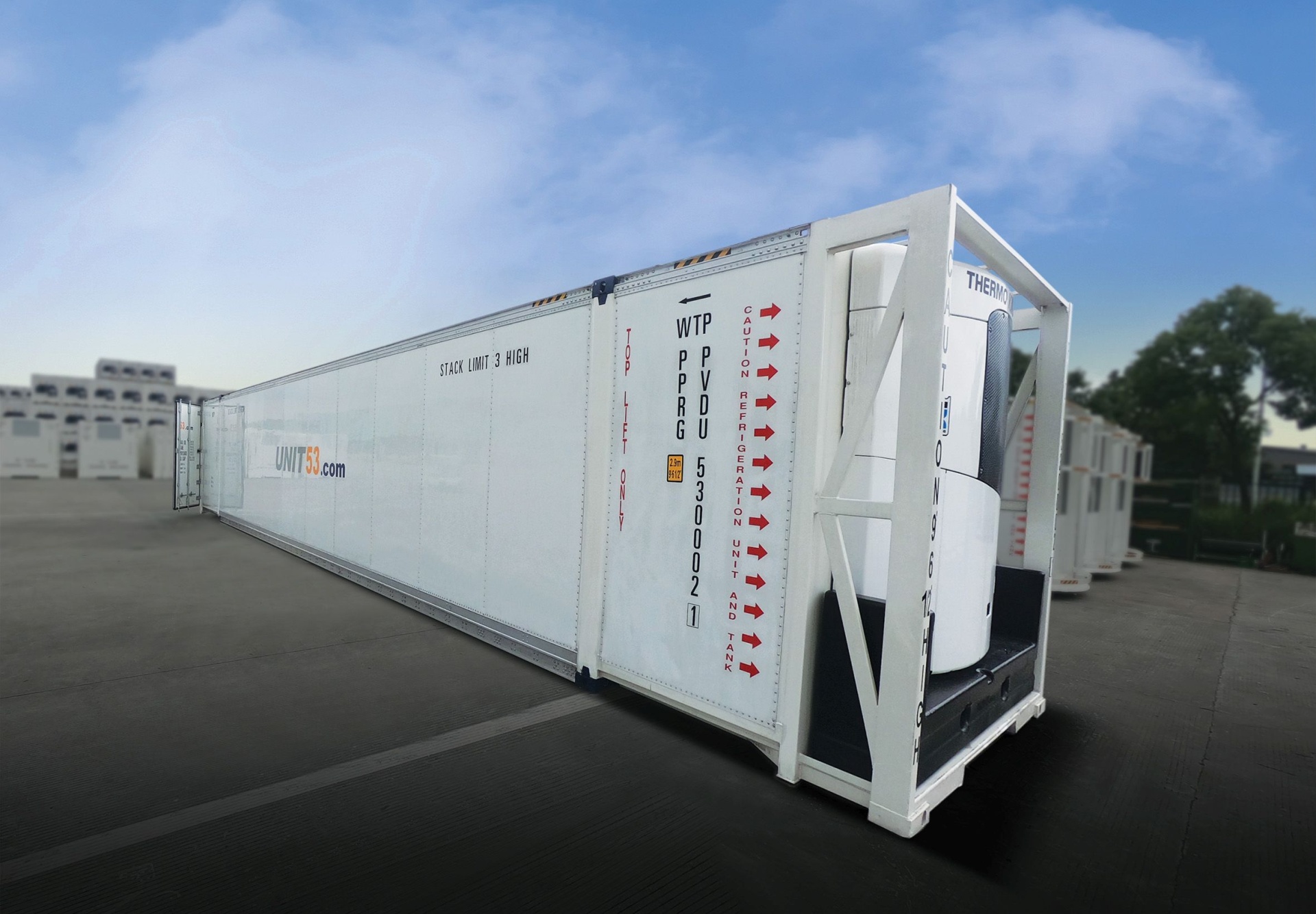

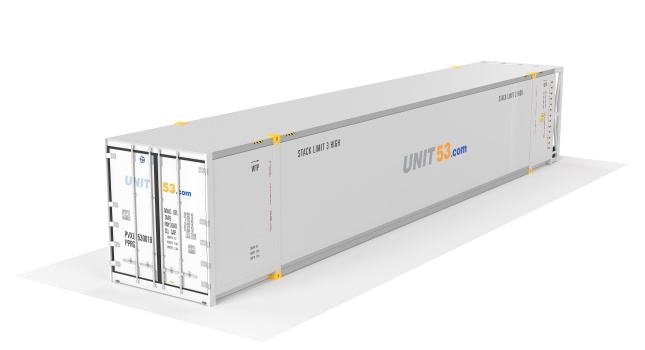

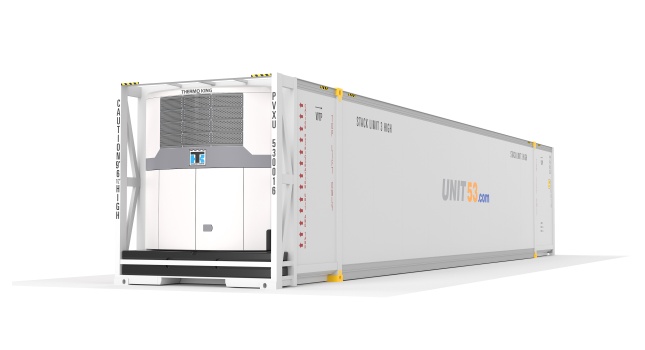

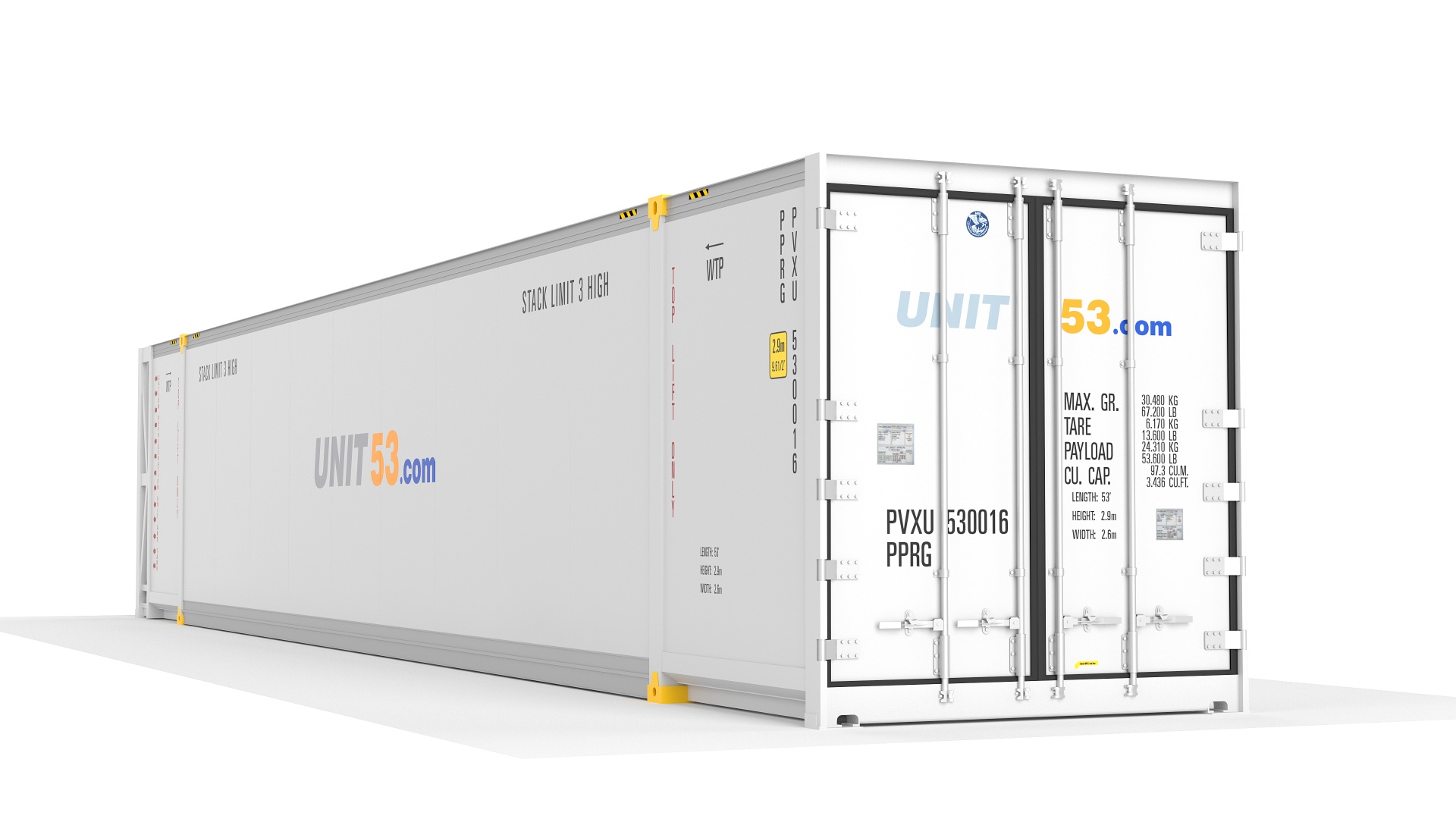

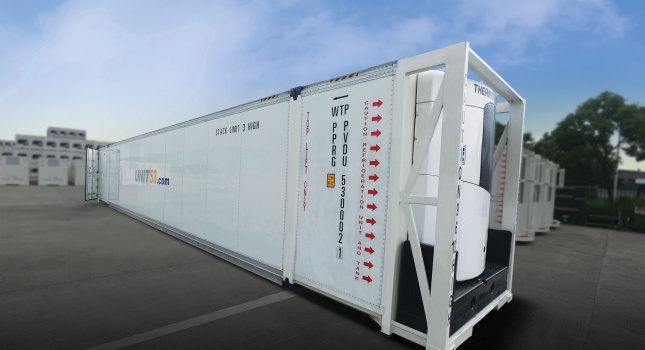

UNITS: Diesel reefer unit

Our 53ft diesel reefer offers a high cubic capacity and payload. By using special high-strength steels and lightweight floor materials, an extremely low tare weight has been achieved. For domestic transportation of perishable and temperature-sensitive food our 53ft containers offer the most space for your cargo.

SPECIFICATIONS

External dimensions
  • Length: 16,154 mm / 53ft
  • Width: 2,600 mm / 8ft 6 3/8
  • Height: 2,908 mm / 9ft 6 1/2

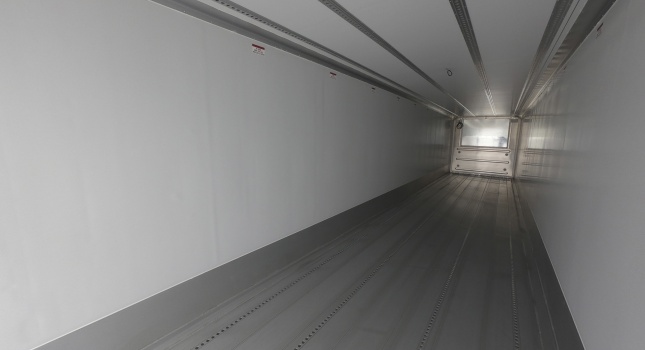

Internal dimensions
  • Length: 15345,5 mm / 50ft 4 31/64
  • Width: 2,470 mm / 8ft 1 15/64
  • Height: 2,566 mm / 8ft 5
Capacity
  • Cubic capacity: 97.3 m3 / 3436 cf
Weight
  • Gross weight: 30,480 kgs / 67200 lbs
  • Tarra weight: 6,170 kgs / 13600 lbs
  • Max Payload: 24,310 kgs / 53600 lbs
Door opening
  • Door width: 2,473 mm / 8ft 1 15/64
  • Door height: 2,568 mm / 8ft 8 41/64

Images
